Large Motor Load Testing

Why load test your motor or generator? Bradleys’ recommends load testing to ensure reliability, to validate repairs, to verify performance, to ensure system compatibility between motors and drives, and prior to storage of your critical spare motors.

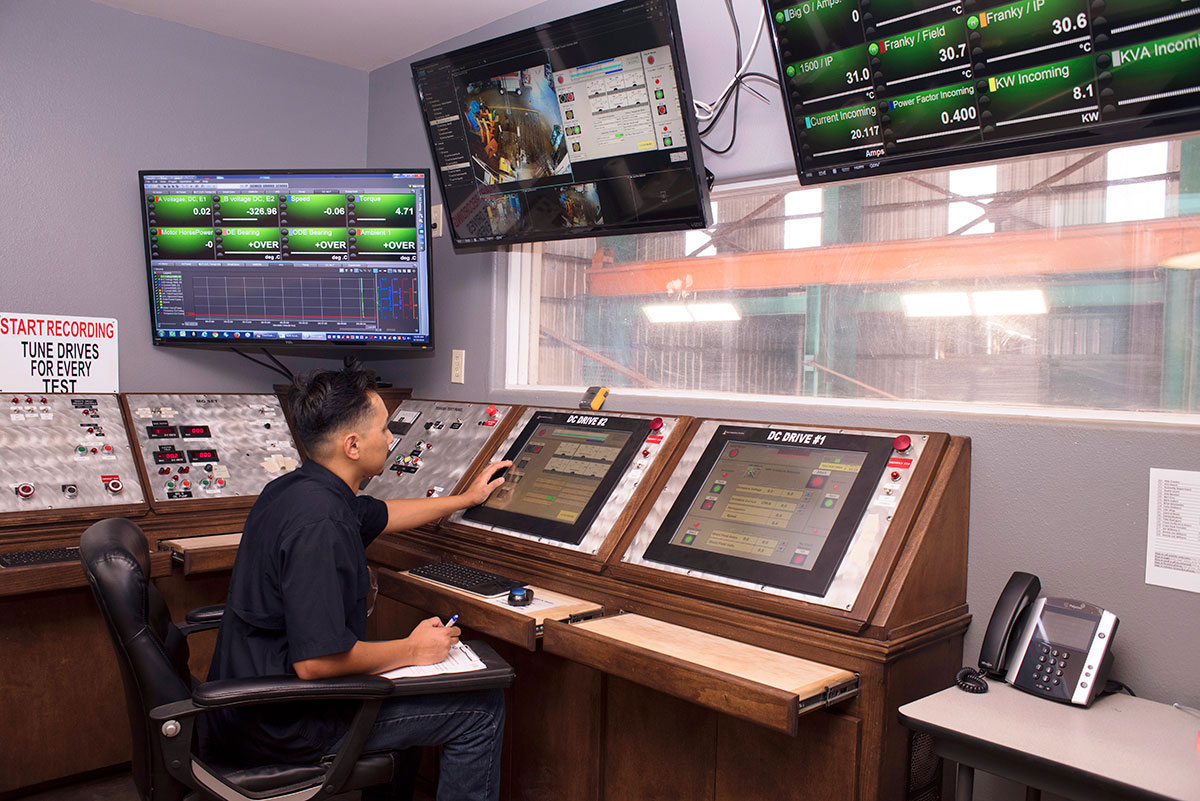

Bradleys’ large motor load testing capabilities are well known in the industry. Precision torque measurements and power input measurements assess your electric motor’s performance. Bradleys’ state of the art, in-house load testing control room offers remote monitoring of live data collection and live video stream. Your load test is managed by Electrical and Mechanical engineers and experienced load testing staff experts.

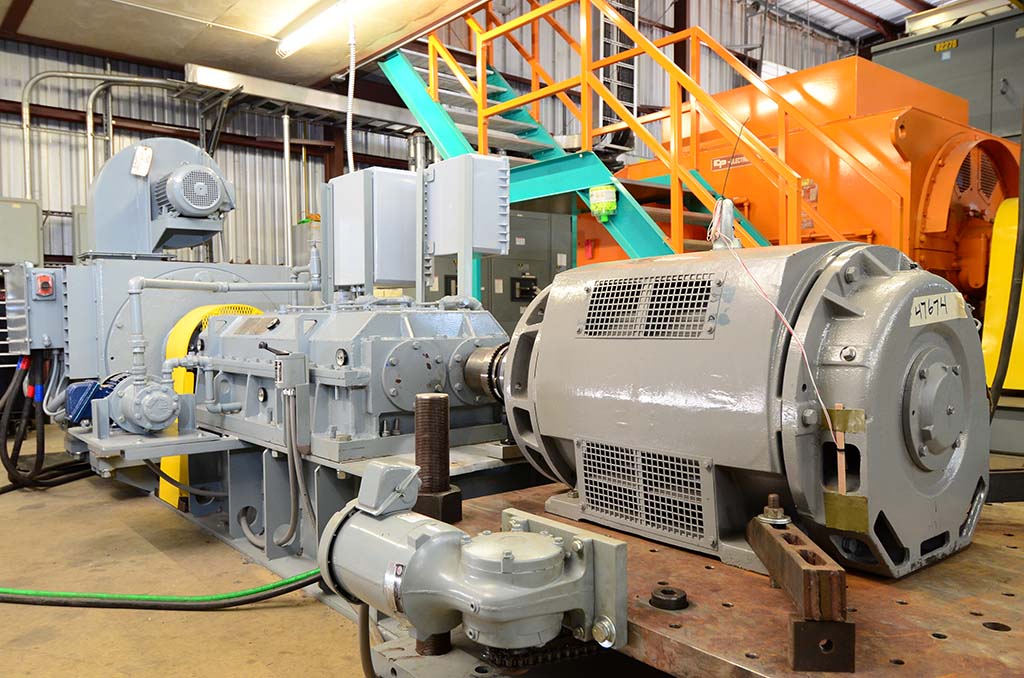

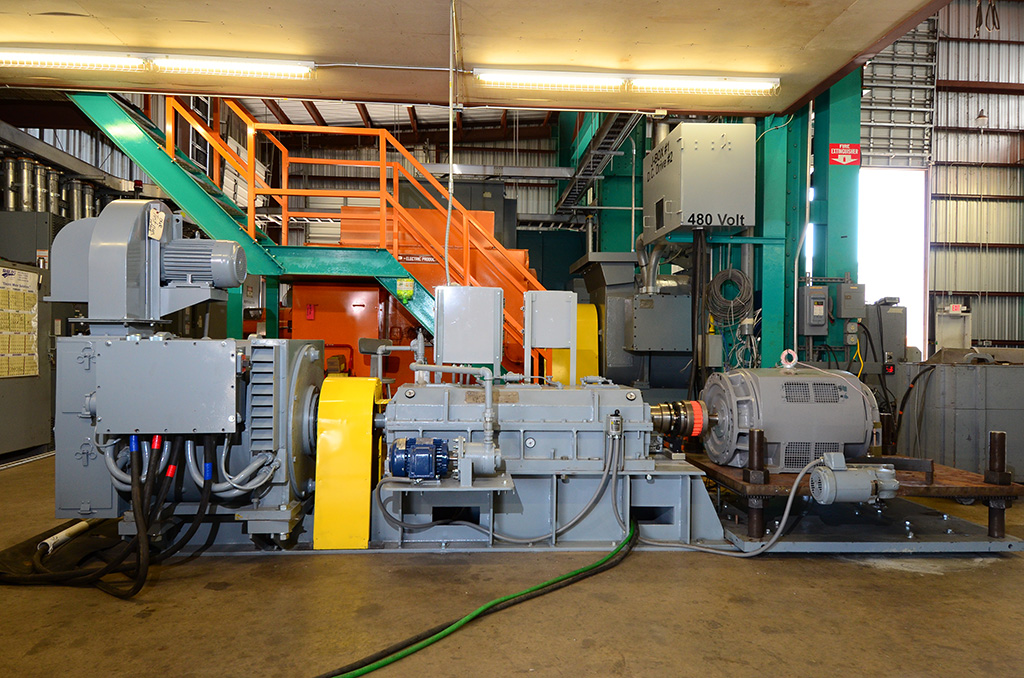

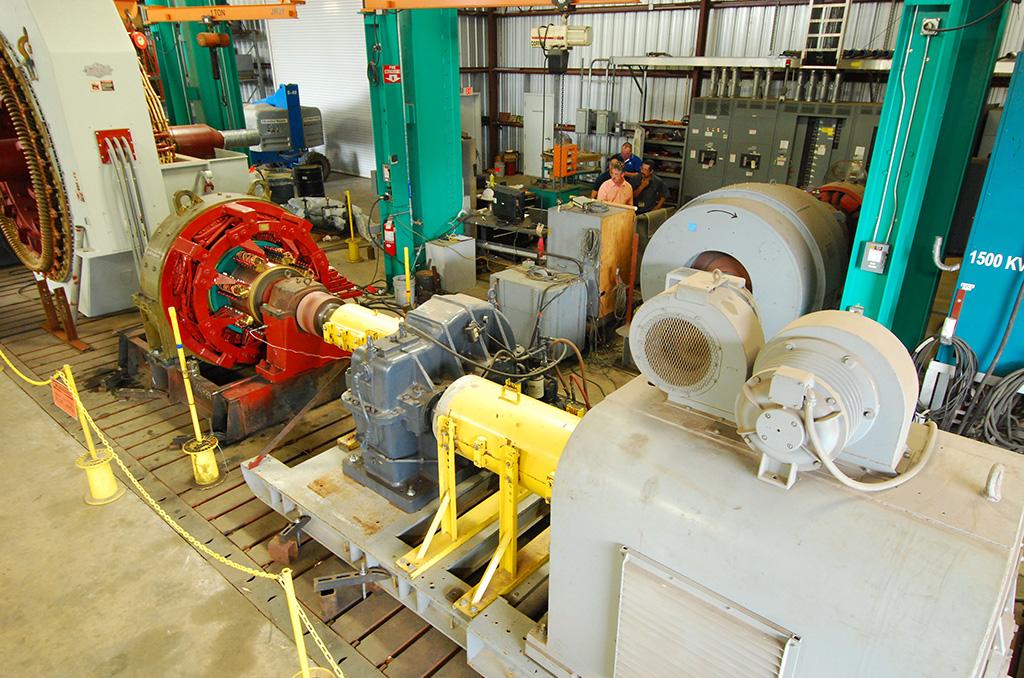

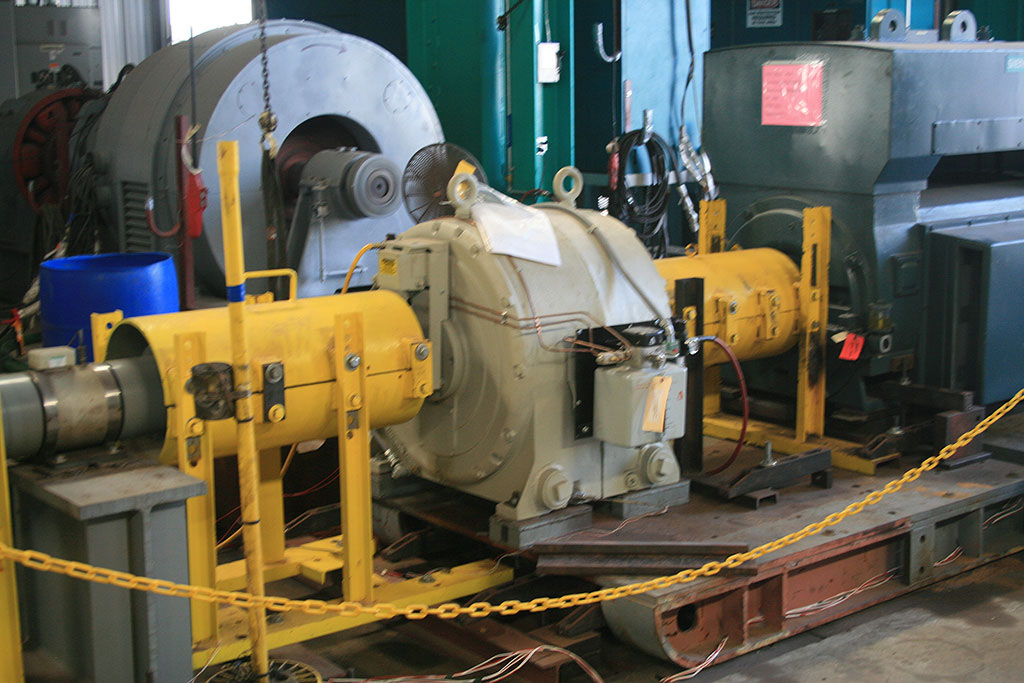

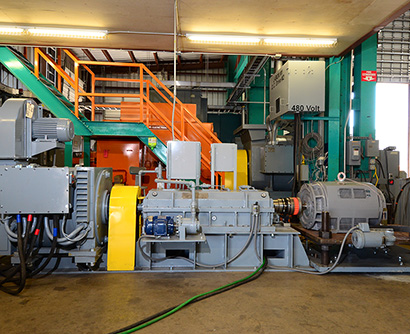

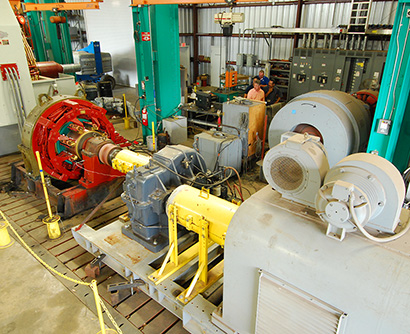

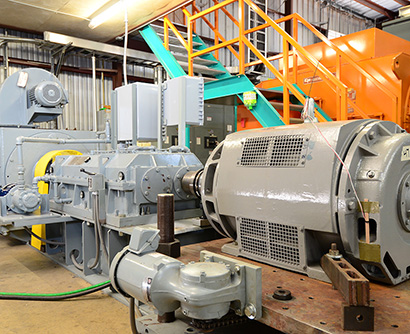

Our dynamometer has a torque measurement device capable of measuring 38,000 FT. LBS at 3600 RPM with a.1% accuracy on a motor load test.The dynamometer set up has several available combinations of speed and horsepower. We can perform a motor load test up to 7000 horsepower AC or 4500 AMP, 750V for DC motors. Data collection includes 12 temperatures, power, HP, efficiency, power factor, torque, speed, currents, and voltages. Data acquisition equipment calibrated within ISO 17025 standard.
    CERTIFIED LOAD TESTING CAPABILITIES:

  • AC – 7000 HP
  • DC – 2500 and 4500 AMP 750 V
  • 480V – 13.2 KV
  • Dual Frequency – 7000 HP Maximum

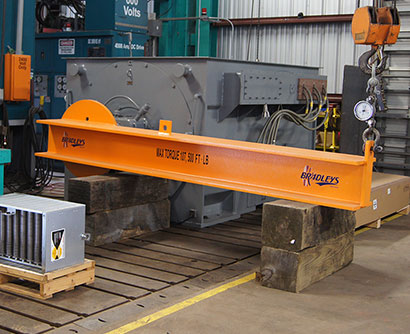

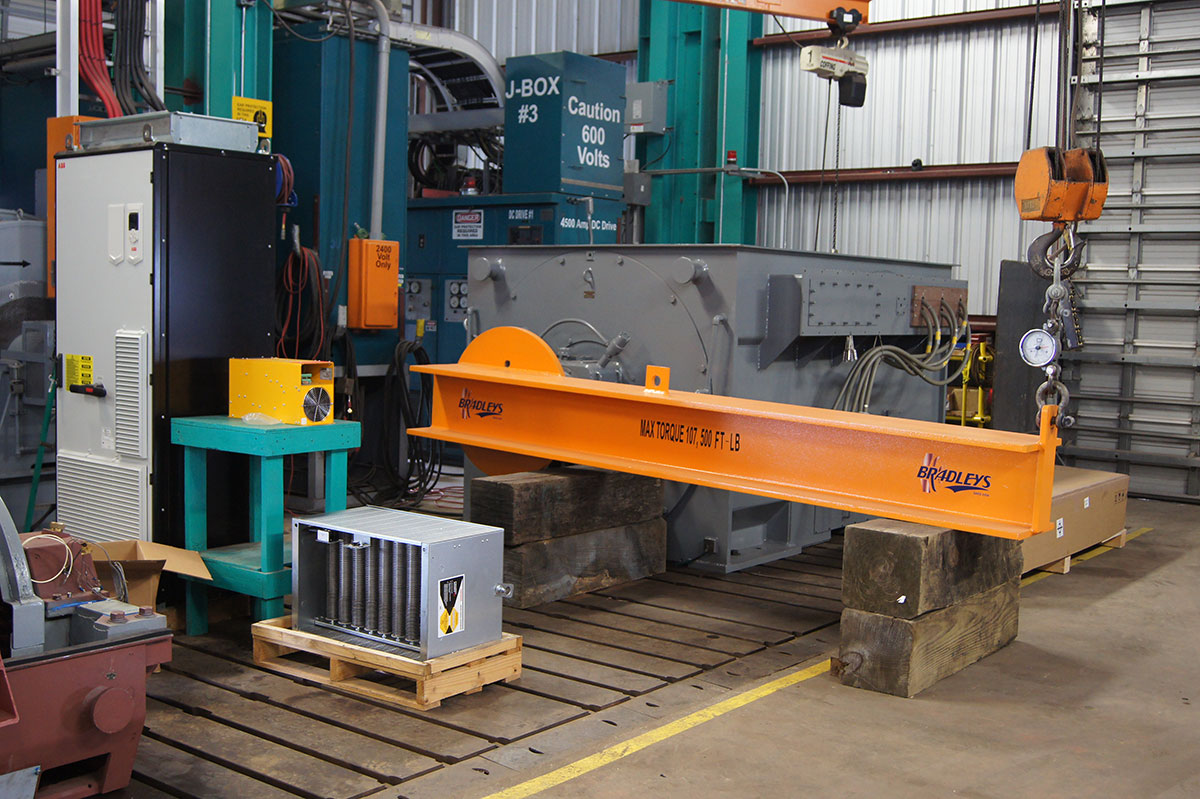

  • 65,000 lb-ft maximum torque, 38,000 lb-ft measured torque
  • Locked Rotor
  • Speed, Torque & Current Curve
  • 300 – 4000 RPM
  • Efficiency
  • Water-Cooled Motors
  • 10’ x 52’ Test Bed
  • IEEE 112 & 115 Standard Testing

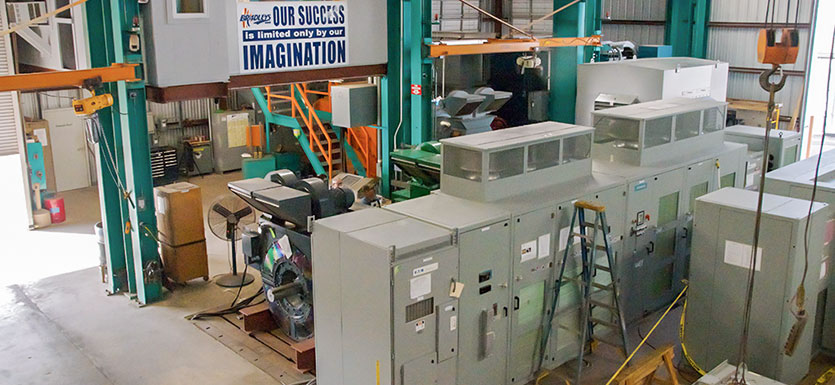

  • VFD/Motor System Testing

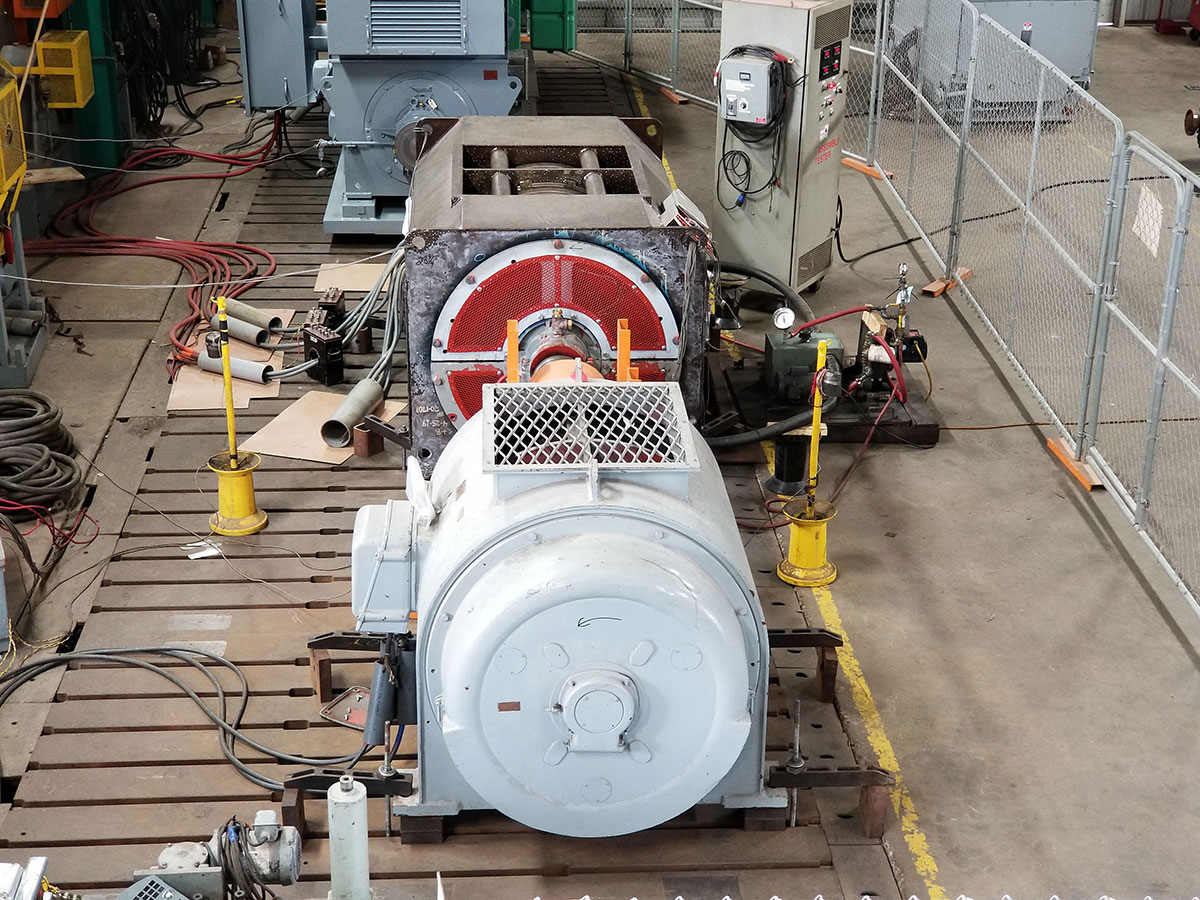

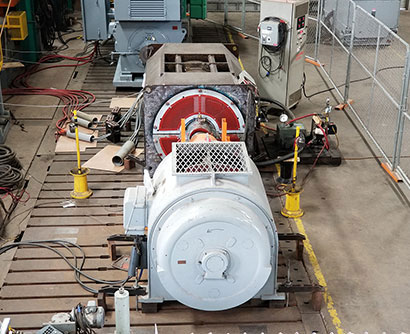

  • Generators up to 7MW
  • ABS Testing
  • UL Testing
  • Vertical Load Testing at 2500 HP, 1200 RPM Maximum

    NO LOAD TESTING CAPABILITIES:

  • 13.8 KVA
  • 7MVA – MG Set
  • 35,000 HP Full Voltage

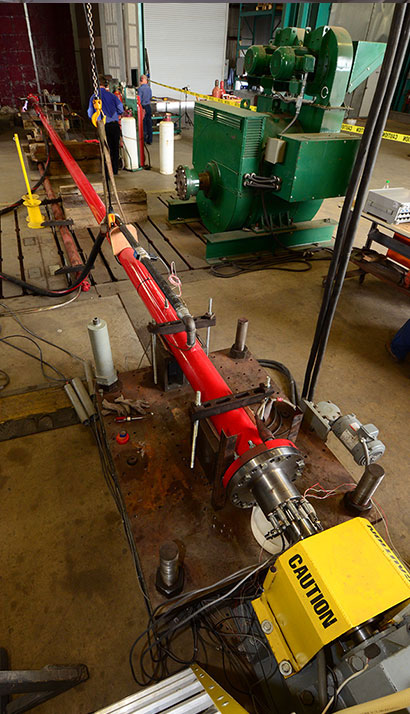

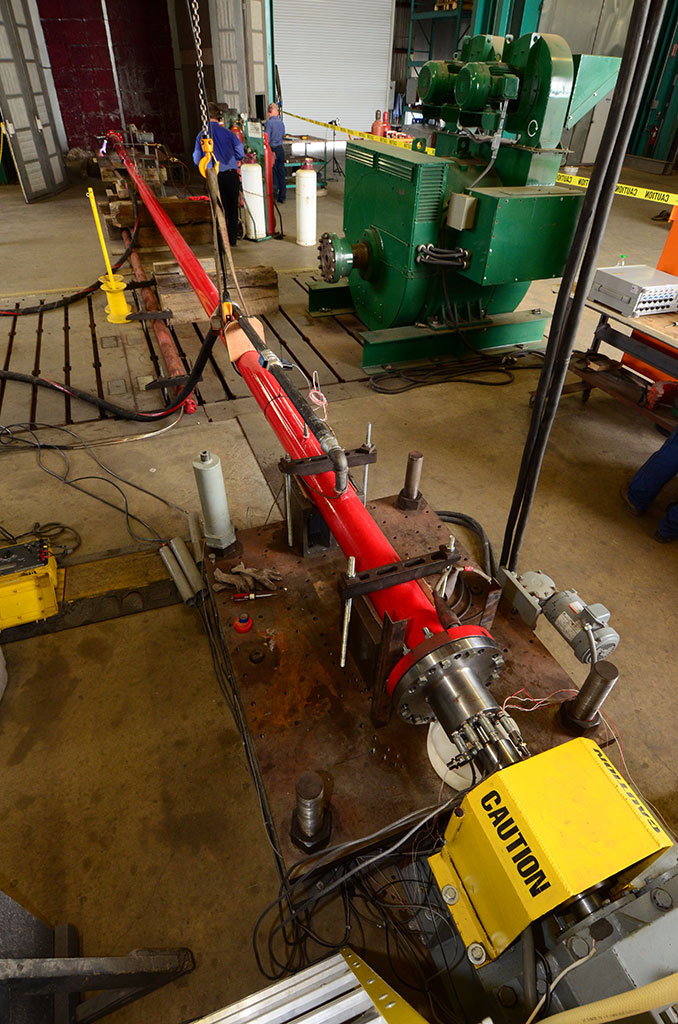

There is no motor too small or too large for Bradleys'. Here we are preparing a Nuclear Reactor Motor for testing.
